ILLUMINATION

• Long lasting,efficient ultra bright white LED lamp heads.

• 1.5watt(12LEDsx0.125W)per head.

• High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.

• Adjustable LED lamp heads provides optimal center-to-center spacing.

• Optional high-lumen heads are available for increased center-to-center spacing.

• Long life,energy efficient Red or Green LED EXIT sign illumination.

ELECTRICA

• 120-347V.

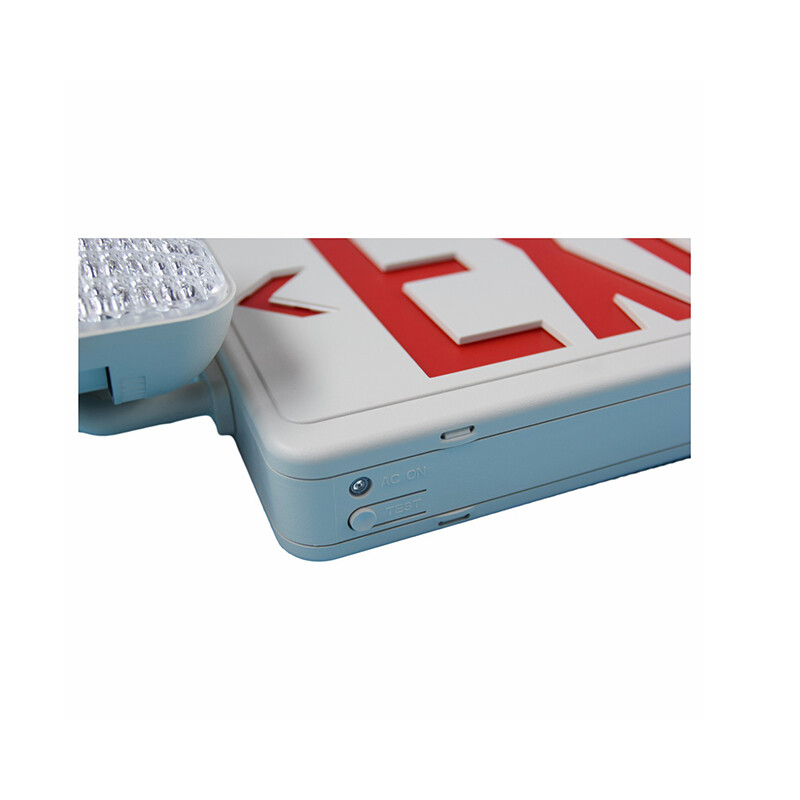

• Charge rate/power“ON”LED indicator light and push-to-test switch for mandated code compliance testing.

• 3.6V Long  life,maintenance-free,rechargeable  NiCd battery.

• Internal solid-state transfer switch automatically connects  the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.

• Fully automatic solid-state,two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

• Internal toggle switch for red or green letter color selection for RG models.

MOUNTING

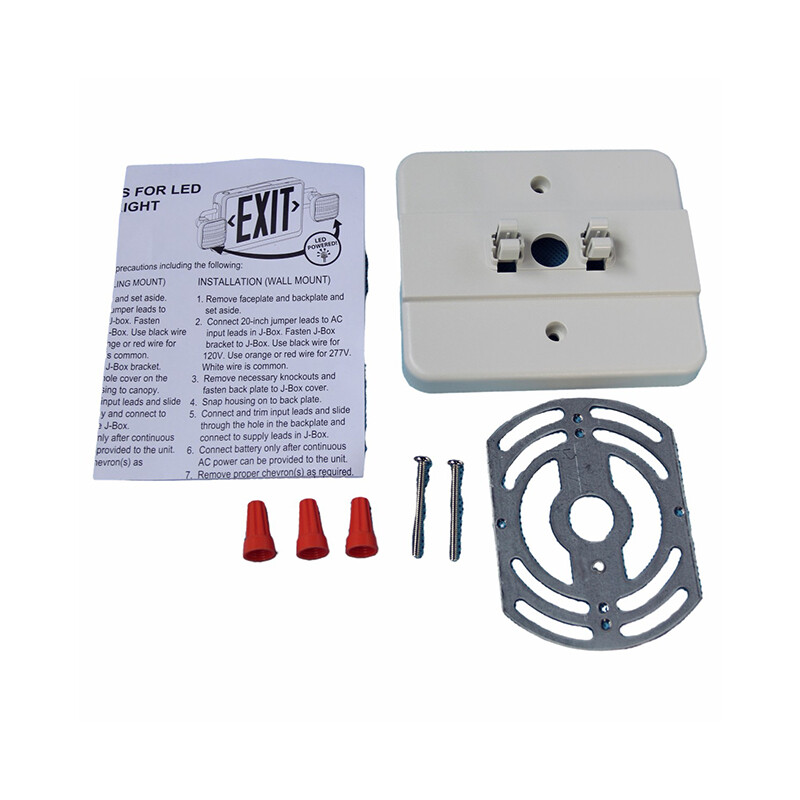

• EZ-snap mounting canopy included for top or end mount.

• Universal KIO pattern on back plate for wall mount.

HOUSING

• Injection-molded,engineering grade,5VA flame retardant,high-impact resistant,thermoplastic in white or black finish.

• EZ snap-out chevron directional indicators

WARRANTY/LISTING

• Five year warranty on all electronics and housing.

• Battery pro rated for five years.

• Damp locations(0℃-50℃).
