LEDEML01 Range

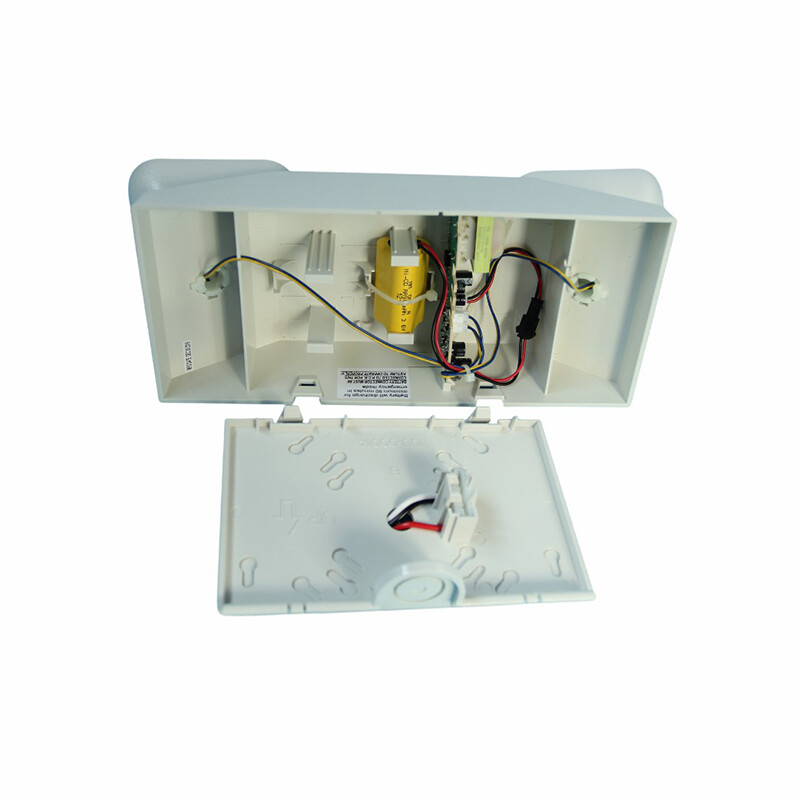

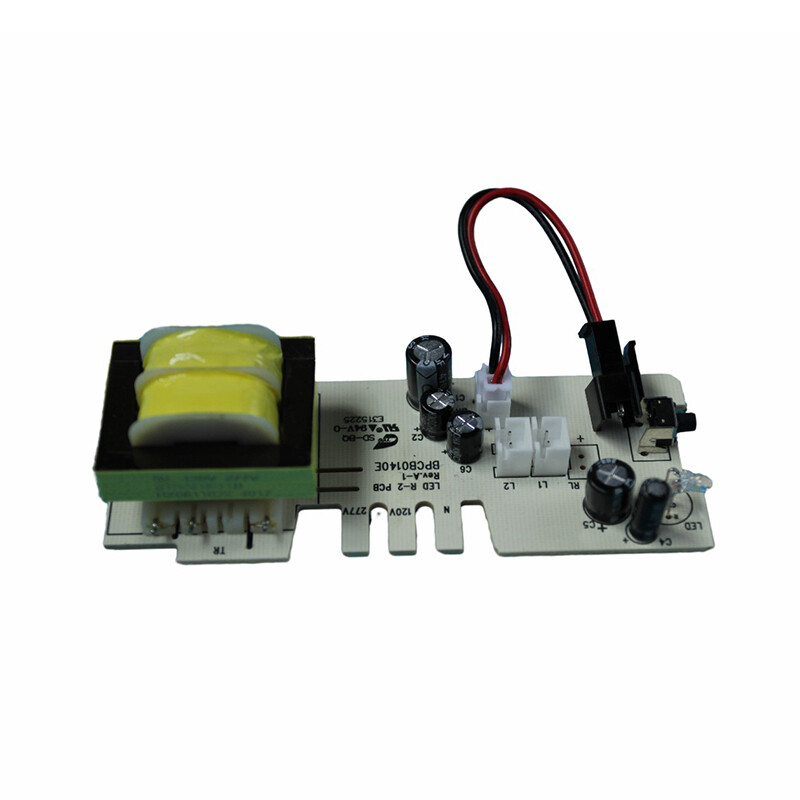

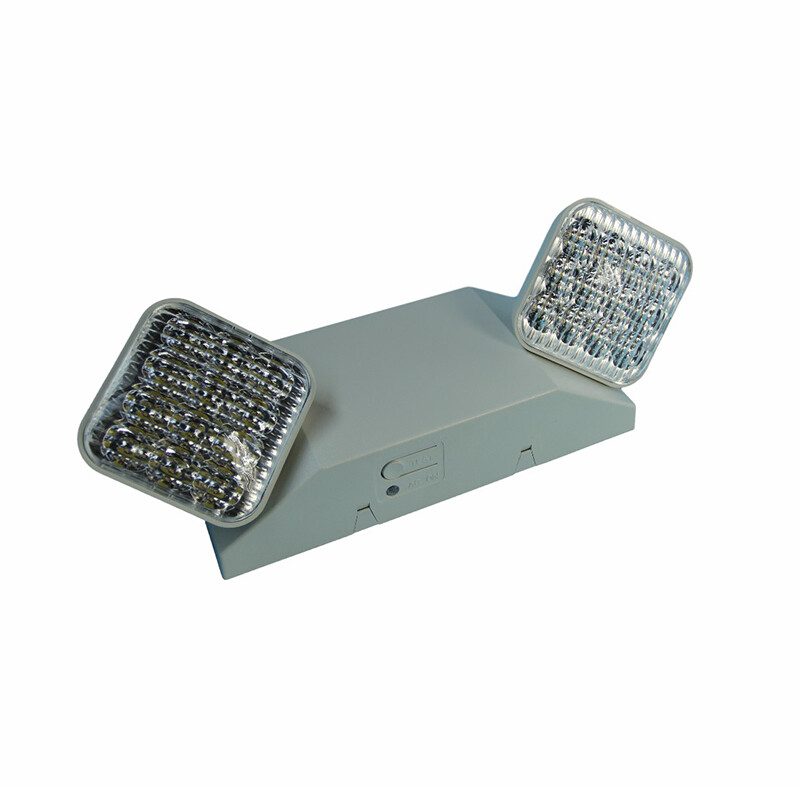

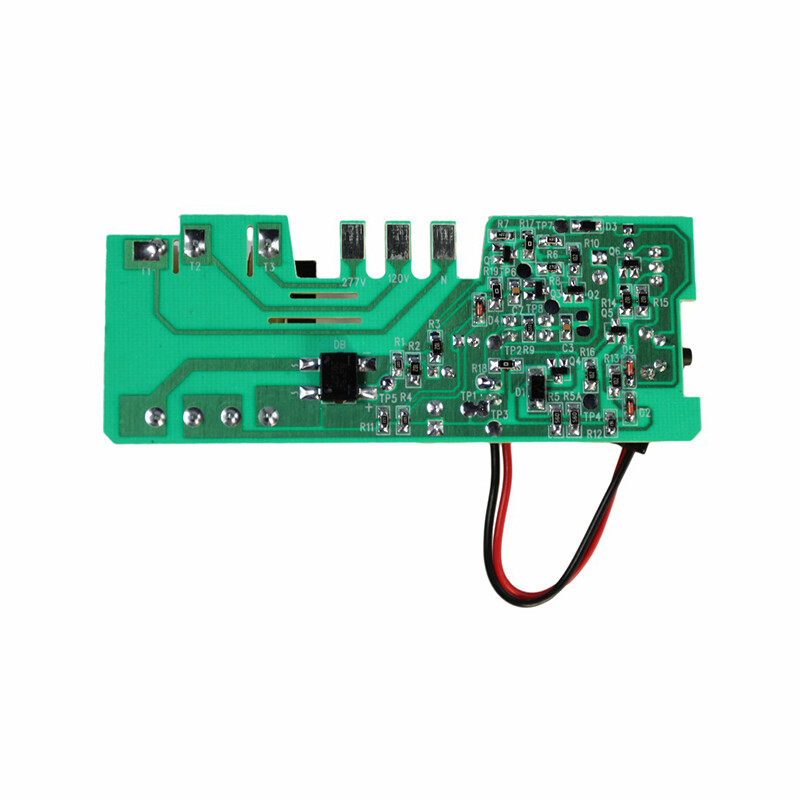

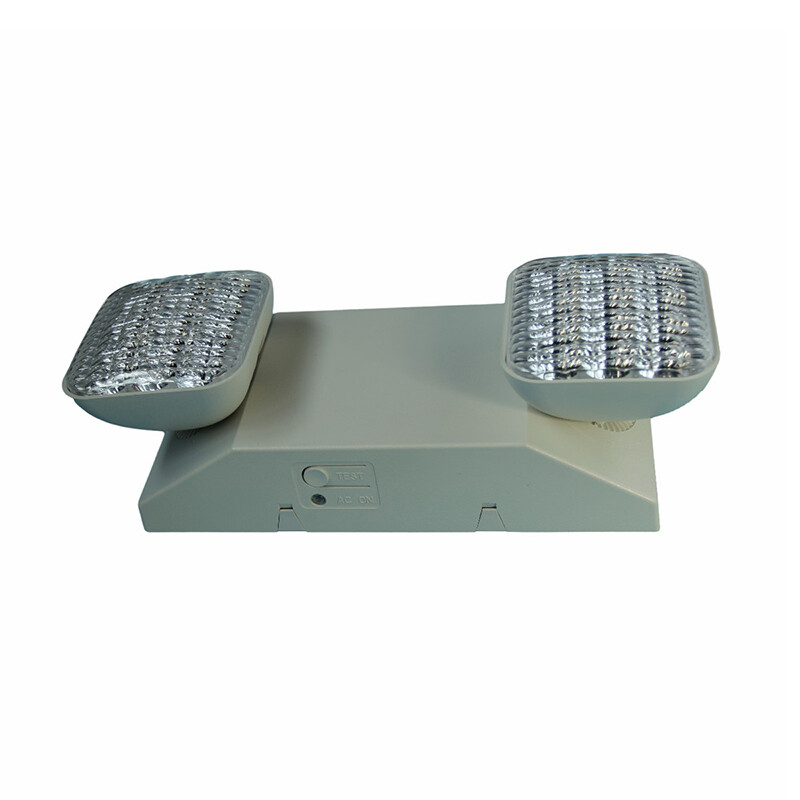

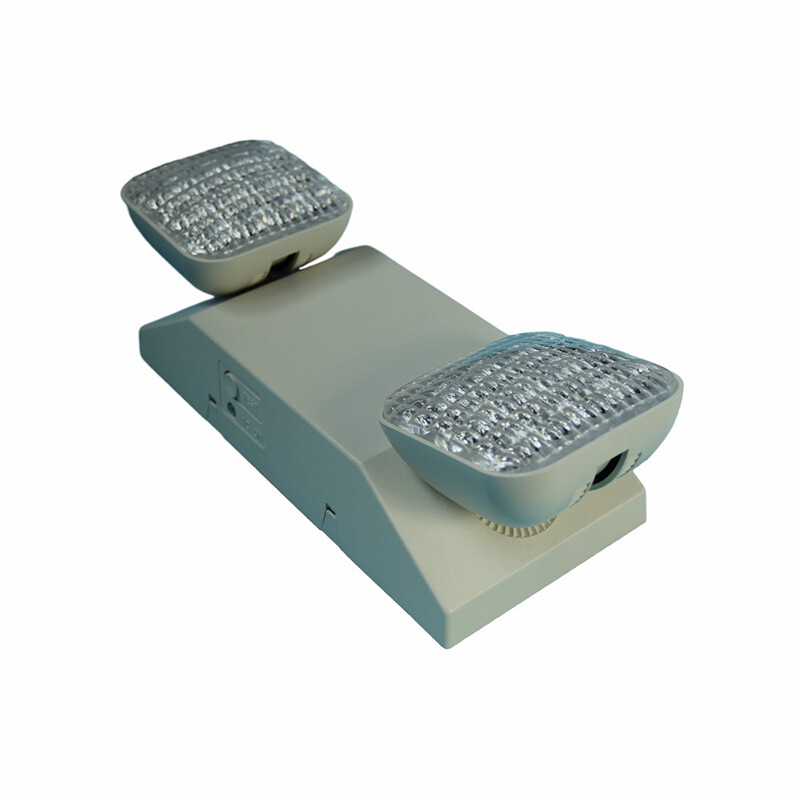

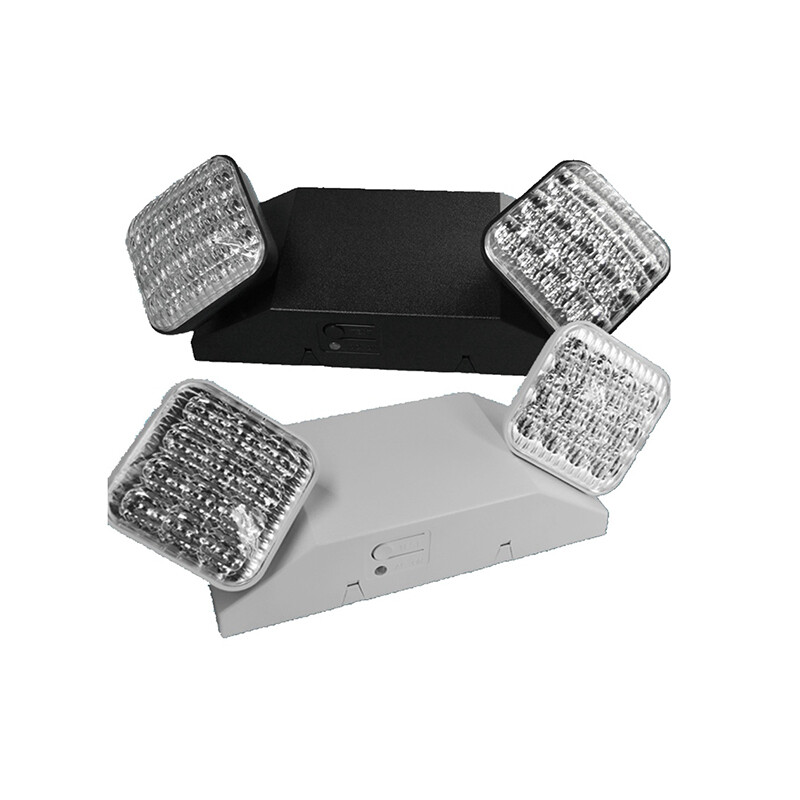

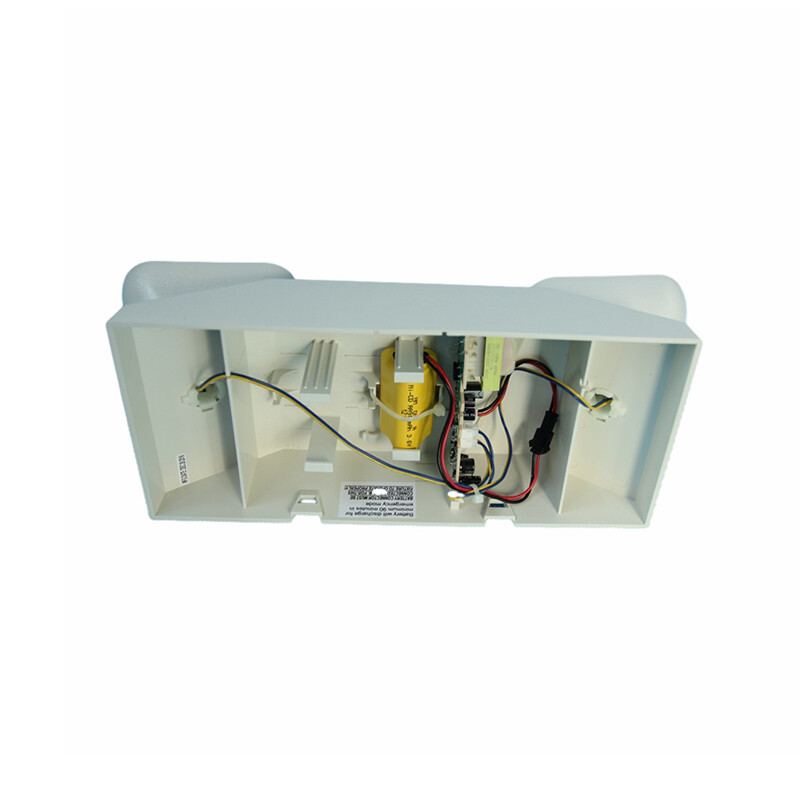

LEDEML LED Emergency Unit
Model: LEDEML01
  • 120-347V.

  • Charge rate/power“ON”LED indicator light and push to test switch for mandated code compliance testing.

  • Long-life,maintenance-free,rechargeable NiCd battery.

  • Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.

  • Fully automatic solid-state,two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Resources
Approvals
Data Sheet:

LEDEML.pdf

Installation Instructions:

LEDEML Instructions.pdf

Overview

Get A Quote

ILLUMINATION

  • Long lasting,efficient ultra-bright white LED lamp heads.

  • High-performance chrome-plated metalized reflector and plastic lens for optimal light distribution.

  • Adjustable LED lamp heads provide optimal center-to-center spacing.


ELECTRICA

  • 120-347V.

  • Charge rate/power“ON”LED indicator light and push to test switch for mandated code compliance testing.

  • Long-life,maintenance-free,rechargeable NiCd battery.

  • Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.

  • Fully automatic solid-state,two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.


MOUNTING

  • Surface mount via quick-connect back plate fits most standard size junction boxes and snaps into place to make internal electrical connections.

  • Conduit mount knockout on top of housing and back plate.

  • Suitable for wall or ceiling mount.


HOUSING

  • Injection-molded,engineering-grade,5VAflame retardant, high-impact resistant,thermoplastic in white or black finish.


WARRANTY/LISTING

  • Five year warranty on all electronics and housing.Batteries pro-rated for five years.

  • UL listed for damp locations.

  • Meets UL924,NFPA101 Life Safety Code,NEC,OSHA,Local and State Codes.
